Specifications
· Leakage rate: ＜10-8Pa·L／S
· Baking resistance temperature: ≤350℃
· All are sealed with oxygen free copper gasket
Application
· I t is used for ultra-high vacuum instruments and equipment, and can clearly observe the internal conditions of the system from the outside.
· Glass can be used as fluorescent screen after being coated

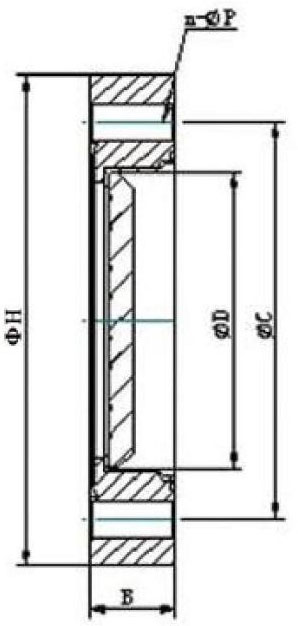

| Model No. | ΦH | ΦC | ΦD | n-ΦP | B | Part No. |
| CF-VP-16 | 34 | 27 | 14 | 6-Φ4.3 | 18 | 80010101-0016 |
| CF-VP-25 | 54 | 43 | 23 | 6-Φ6.6 | 14 | 80010102-0025 |
| CF-VP-35 | 70 | 58.7 | 38 | 6-Φ6.6 | 16 | 80010103-0035 |
| CF-VP-50 | 86 | 72.4 | 50 | 8-Φ8.4 | 17 | 80010104-0050 |
| CF-VP-63 | 114 | 92.2 | 62 | 8-Φ8.4 | 20 | 80010105-0063 |
| CF-VP-100 | 152 | 130.3 | 95 | 16-Φ8.4 | 20 | 80010106-0100 |
| CF-VP-150 | 202 | 181.1 | 146 | 20-Φ8.4 | 22 | 80010107-0150 |
| CF-VP-200 | 253 | 231.9 | 193 | 24-Φ8.4 | 24.5 | 80010108-0200 |
