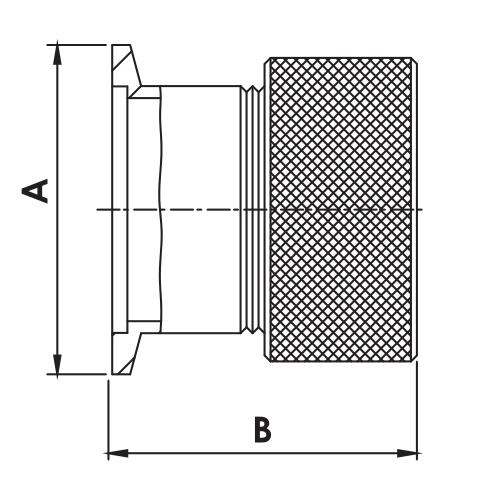

Model No.

Tube size

A

B

Part No.

AD-QC-KF10x050

1 /2”

30

38.1

71260103-1050

AD-QC-KF16x025

1 /4”

30

35.6

71260203-1625

AD-QC-KF16x050

1 /2”

30

38.1

71260303-1650

AD-QC-KF16x075

3 /4”

30

45.7

71260403-1675

AD-QC-KF25x050

1 /2”

40

38.1

71260503-2550

AD-QC-KF25x062

5 /8”

40

43.2

71260603-2562

AD-QC-KF25x075

3 /4”

40

45.7

71260703-2575

AD-QC-KF25x100

1.0”

40

50.8

71260803-25100

AD-QC-KF25x112

1-1/8”

40

50.8

71260903-25112

AD-QC-KF40x050

1 /2”

55

37.6

71261003-4050

AD-QC-KF40x075

3 /4”

55

45.7

71261103-4075

AD-QC-KF40x100

1.0”

55

50.8

71261203-40100

AD-QC-KF40x112

1-1/8”

55

50.8

71261303-40112

AD-QC-KF40x125

1-1/4”

55

50.8

71261403-40125

AD-QC-KF40x138

1-3/8”

55

53.3

71261503-40138

AD-QC-KF40x150

1-1/2”

55

61

71261603-40150

AD-QC-KF50x050

1 /2”

75

38.1

71261703-5050

AD-QC-KF50x075

3 /4”

75

45.7

71261803-5075

AD-QC-KF50x100

1.0”

75

50.8

71261903-50100

AD-QC-KF50x112

1-1/8”

75

50.8

71262003-50112

AD-QC-KF50x150

1-1/2”

75

61

71262103-50150

AD-QC-KF50x200

2.0”

75

61

71262203-50200
