ISO to CF Flange conical adaptor

Material:SS304

Remark: SS316L is available upon request.

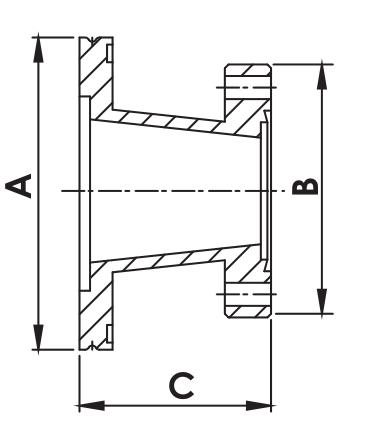

Drawing
Product Specifications

Model No.

A

B

C

Part No.

AD-C-ISOCF-63x35

ISO63

CF35

71.9

71240103-6335

AD-C-ISOCF-63x50

ISO63

CF50

72.3

71240203-6350

AD-C-ISOCF-63x80

ISO63

CF80

105.5

71240303-6380

AD-C-ISOCF-63x100

ISO63

CF100

109.5

71240403-63100

AD-C-ISOCF-80x35

ISO80

CF35

103.7

71240503-8035

AD-C-ISOCF-80x50

ISO80

CF50

104.1

71240603-8050

AD-C-ISOCF-80x63

ISO80

CF63

107.9

71240703-8063

AD-C-ISOCF-80x100

ISO80

CF100

109.5

71240803-80100

AD-C-ISOCF-100x50

ISO100

CF50

104.1

71240903-10050

AD-C-ISOCF-100x63

ISO100

CF63

107.9

71241003-10063

AD-C-ISOCF-100x80

ISO100

CF80

105.5

71241103-10080
